Auto maintenance Equipment

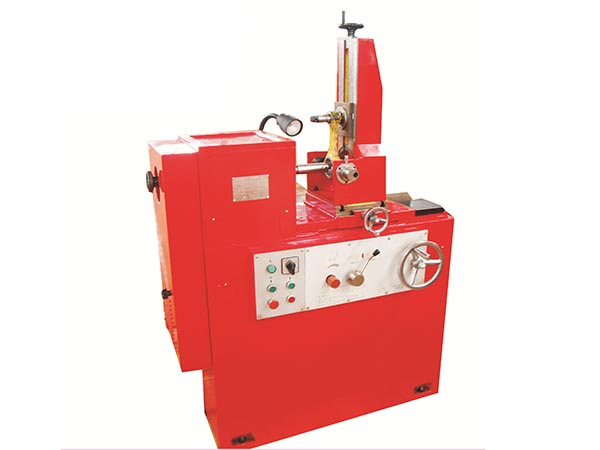

T8210D
|
主要技术参数 |
Main Specifications |
T8210D |
|
镗孔直径 mm |
Boring Diameter |
16-100 |
|
连杆中心距 mm |
Center Distance of Link Two Hole |
100-450 |
|
拖板移动行程 mm |
Longitudinal Stroke of Worktable |
220mm |
|
主轴转速 rpm |
Spindle Speed |
350,530,780,1180 |
|
拖板移动速度 mm/min |
Feeding Speed of Worktable |
16-250 |
|
拖板移动最快速度 mm/min |
Max. Feeding Speed of worktable |
1800 |
|
主电机功率 kw |
Motor Power |
0.65/0.85 |
|
机器包装尺寸（L*W*H）mm |
Packing Dimensions |
1700*950*1700 |
|
净重/毛重 kg |
N.W/G.W |
700/900 |
