PRODUCTS
Auto maintenance Equipment

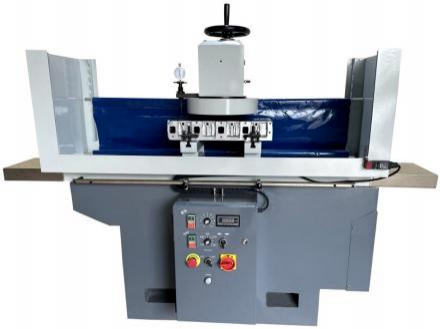

Cylinder Head and Block Resurfacing Machine
High quality cast iron frame offers high rigidity and sturdiness features.
Variable table travel feed / head rotate speed.Table feed operated by ball screw drive extremely precise.
Taiwan brand inverters control table travel and head rotate.
Manual/continuous working cycle programs.
CE standard control panel.
Safety guard with policarbonate shield.
1/2” CBN/PCD insert and tool holder as standard accessories.
|
Model |
KSM850 |
|
Table travel |
1115mm |
|
Max. workpiece lenght |
850mm |
|
Max. workpiece width |
330mm |
|
Max. workpiece height |
440mm |
|
Min. workpiece height |
160mm |
|
Table feed |
0÷600mm/min |
|
Milling wheel diameter |
330 mm (13") |
|
Cutting tool speed |
300÷1200g/min(rpm) |
|
Voltage(+/- 15%) |
230V , 400V |
|
Phases |
1 , 3 |
|
Min.protection degree |
IP 44 |
|
Main motor power |
1.5kw |
|
Gear box motor power |
0.75kw |
|
Total power |
2.25kw |
|
Environment conditions: |
10÷30°C |
|
Weight |
800kg |
|
Dimensions length*width*height |
1720*870*1630mm |
