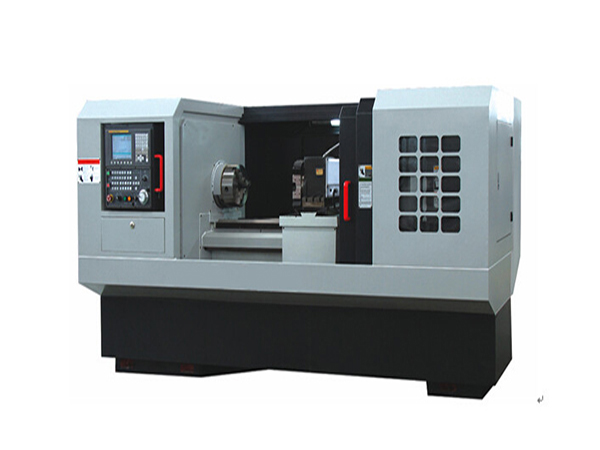

CAK6166/CAK6180

主要技术参数

Main Specification

CAK6166

CAK6180

床身最大工件直径 mm

Max Swing Over Bed

660

800

床身最大工件长度 mm

Max. Work Piece Length

750/1000/1500/2000/3000

主轴孔锥度

Spindle Taper

MT6（∅90 1:20）

卡盘规格

Chuck Size

C6（D8）

主轴通孔直径  mm

Thru-hole of Spindle

52

80

转速范围 rpm

Spindle Speed（12 steps）

21-1620rpm（I 162-1620 II 66-660 III 21-210）

尾座顶尖行程  mm

Tailstock Center Sleeve Travel

150

尾座套筒锥度

Tailstrock Center Sleeve Taper

MT5

重复定位精度  mm

Repeatability Accuracy

0.01

快移速度 m/min

X/Z Rapid Traverse

3/6m/min

电机功率  kw

Spindle Motor Power

7.5

Packing Dimension

（L*W*H）mm

Overall Dimension for 750mm

2440*1450*1900

Overall Dimension for 1000mm

2650*1450*1900

Overall Dimension for 1500mm

3150*1450*1900

Overall Dimension for 2000mm

3650*1450*1900

Overall Dimension for 3000mm

4650*1450*1900

净重/毛重（N.W/G.W）kg

Overall Dimension for 750mm

2300/2900

2400/3000

Overall Dimension for 1000mm

2450/3050

2250/3150

Overall Dimension for 1500mm

2650/3250

2750/3350

Overall Dimension for 2000mm

2880/3450

2980/3550

Overall Dimension for 3000mm

3700/4300

3800/4400
