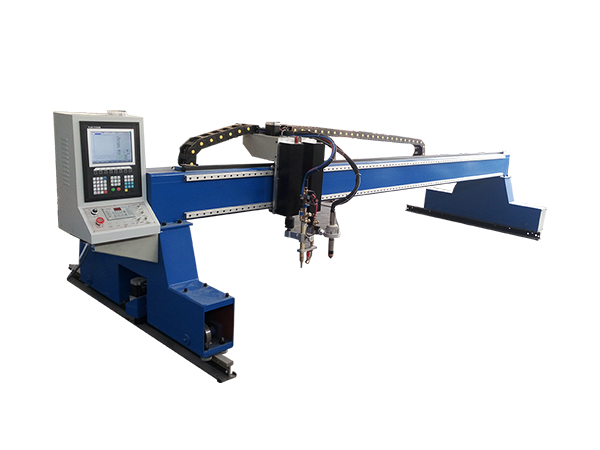

Plasma cutting machine
PS2012/PS2016/PS2020/PS2024/PS2028/PS2512/PS2516/PS2520/PS2524/PS2528
|
主要技术参数 Main Specification |
切割台尺寸 Cutting Table |
工作台高度 Table Height |
工作台尺寸 Table Size |
X轴行程 X Axis Stroke |
Y轴行程 Y Axis Stroke |
机器外形尺寸 Overall Dimensions |
|
PS2012 |
2200*12800mm |
750mm |
2200*11200mm |
2800mm |
10200mm |
14200*4250*2200mm |
|
PS2016 |
2200*16800mm |
750mm |
2200*14400mm |
2800mm |
16200mm |
18200*4250*2200mm |
|
PS2020 |
2200*20800mm |
750mm |
2200*19200mm |
2800mm |
20200mm |
22200*4250*2200mm |
|
PS2024 |
2200*24800mm |
750mm |
2200*22400mm |
2800mm |
24200mm |
26200*4250*2200mm |
|
PS2028 |
2200*28800mm |
750mm |
2200*27200mm |
2800mm |
28200mm |
30200*4250*2200mm |
|
PS2512 |
2700*12800mm |
750mm |
2700*11200mm |
3300mm |
10200mm |
14200*4750*2200mm |
|
PS2516 |
2700*16800mm |
750mm |
2700*14400mm |
3300mm |
16200mm |
18200*4750*2200mm |
|
PS2520 |
2700*20800mm |
750mm |
2700*19200mm |
3300mm |
20200mm |
22200*4750*2200mm |
|
PS2524 |
2700*24800mm |
750mm |
2700*22400mm |
3300mm |
24200mm |
26200*4750*2200mm |
|
PS2528 |
2700*28800mm |
750mm |
2700*27200mm |
3300mm |
28200mm |
30200*4750*2200mm |
|
PS3012 |
3200*12800mm |
750mm |
3200*11200mm |
3800mm |
10200mm |
14200*5250*2200mm |
|
PS3016 |
3200*16800mm |
750mm |
3200*14400mm |
3800mm |
16200mm |
18200*5250*2200mm |
|
PS3020 |
3200*20800mm |
750mm |
3200*19200mm |
3800mm |
20200mm |
22200*5250*2200mm |
|
PS3024 |
3200*24800mm |
750mm |
3200*22400mm |
3800mm |
24200mm |
26200*5250*2200mm |
|
PS3028 |
3200*28800mm |
750mm |
3200*27200mm |
3800mm |
28200mm |
30200*5250*2200mm |
|
PS3512 |
3700*12800mm |
750mm |
3700*11200mm |
4300mm |
10200mm |
14200*5750*2200mm |
|
PS3516 |
3700*16800mm |
750mm |
3700*14400mm |
4300mm |
16200mm |
18200*5750*2200mm |
|
PS3520 |
3700*20800mm |
750mm |
3700*19200mm |
4300mm |
20200mm |
22200*5750*2200mm |
|
PS3524 |
3700*24800mm |
750mm |
3700*22400mm |
4300mm |
24200mm |
26200*5750*2200mm |
|
PS3528 |
3700*28800mm |
750mm |
3700*27200mm |
4300mm |
28200mm |
30200*5750*2200mm |
|
PS4012 |
4200*12800mm |
750mm |
4200*11200mm |
4800mm |
10200mm |
14200*6250*2200mm |
|
PS4016 |
4200*16800mm |
750mm |
4200*14400mm |
4800mm |
16200mm |
18200*6250*2200mm |
|
PS4020 |
4200*20800mm |
750mm |
4200*19200mm |
4800mm |
20200mm |
22200*6250*2200mm |
|
PS4024 |
4200*24800mm |
750mm |
4200*22400mm |
4800mm |
24200mm |
26200*6250*2200mm |
|
PS4028 |
4200828800mm |
750mm |
4200*27200mm |
4800mm |
28200mm |
30200*6250*2200mm |
