Shear machine

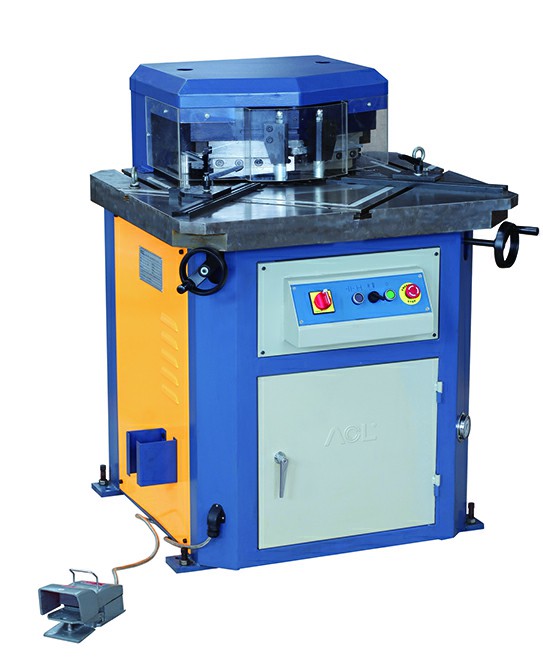

Q28YB-6*220
|
主要技术参数 |
Main Specification |
Q28YB-6*220 |
|
可调式剪切角 ° |
Adjusting Shearing Angle |
40-130 |
|
刀片长度 mm |
Blade length |
220 |
|
最大剪切厚度 (σb=450MPa) mm |
Max. Shearing Thickness |
6 |
|
最大剪角边长 mm |
Max. notching Length |
220 |
|
行程次数（最大剪切长度时）spm |
Stroke（when Max. Shearing Length） |
24 |
|
工作台尺寸 mm |
Table Size |
950*850 |
|
工作台离地高度 mm |
Height of Worktable |
950 |
|
主电机功率 kw |
Main Motor Power |
4 |
|
主电机转速 rpm |
Main Motor Rotation Speed |
1440 |
|
油箱容积 L |
Fuel Tank Capacity |
30 |
|
液压系统最高工作压力 Mpa |
Max. working Pressure of Hydraulic System |
18 |
|
外形尺寸（L*W*H） mm |
Overall Dimension |
950*920*1230 |
|
重量 kg |
Weight |
1000 |
