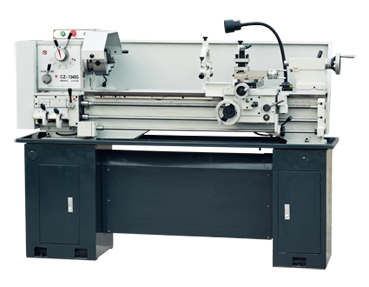

Lathe

CZ1340G/CZ1440G

SPECIFICATION
ITEM		CZ1340G	CZ1440G
Swing over bed	mm	φ330	φ355
Swing over carriage	mm	φ195	φ220
Swing over gap	mm	φ476	φ500
Width of bed-way	mm	186	186
Distance between centers	mm	1000	1000
Taper of spindle		M.T.5	M.T.5
Spindle diameter	mm	φ38	φ38
Step of spindle		8	8
Range of spindle	rpm	70~2000	70~2000
Head		D1-4	D1-4
Metric thread		23kinds (0.25~11mm)	23kinds (0.25~11mm)
Inch thread		40kinds(4~112T.P.I)	40kinds(4~112T.P.I)
Longitudinal feeds	mm/r	0.091~2.553 (0.0036”~0.1005”)	0.091~2.553 (0.0036”~0.1005”)
Cross feeds	mm/r	0.025~0.69 (0.0012”~0.0345”)	0.025~0.69 (0.0012”~0.0345”)
Diameter of lead screw	mm	φ22(7/8”)	φ22(7/8”)
Pitch of lead screw		3mm or 8T.P.I	3mm or 8T.P.I
Saddle travel	mm	1000	1000
Cross travel	mm	170	170
Compound travel	mm	74	74
Barrel travel	mm	95	95
Barrel diameter	mm	φ32	φ32
Taper of center	mm	M.T.3	M.T.3
Motor power	Kw	1.5(2HP)	1.5(2HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)	0.04(0.055HP)
Machine(L×W×H)	mm	1920×750×760	1920×750×760
Stand (left) (L×W×H)	mm	440×410×700	440×410×700
Stand(right) (L×W×H)	mm	370×410×700	370×410×700
Machine	Kg	495/555	500/560
Stand	Kg	70/75	70/75
Loading amount		27pcs/20’container	22pcs/21’container
