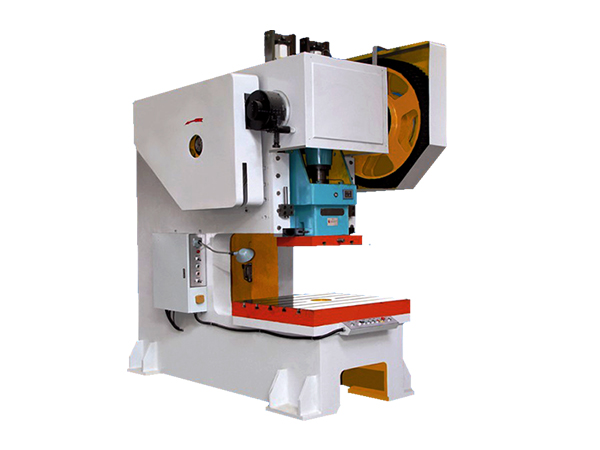

Press

JC21S-16/JC21S-25/JC21S-40/JC21S-63/JC21S-80/JC21S-100/JC21S-125/JC21S-160/JC21S-200/JC21S-250

主要技术参数	Main Specification	JC21S-16	JC21S-25	JC21S-40	JC21S-63	JC21S-80	JC21S-100	JC21S-125	JC21S-160	JC21S-215	JC21S-250
公称力 kn	Nominal Force	160	250	400	630	800	1000	1250	1600	2150	2500
公称力行程 mm	Nominal Force Stroke	2	2.5	4	4	5	5	6	6	6	6
滑块行程 mm	Slide Stroke	70	70	80	80	100	100	120	140	160	160
滑块行程次数	Slider trips	110	65	50	50	50	40	38	40	36	35
最大装模高度 mm	Max. Die Height	200	200	230	250	300	300	320	350	390	450
装模高度调节量 mm	Die Height Adjustment	30	30	40	50	60	80	100	110	110	110
滑块中心到机身距离 mm	Distance Between slide block to machine body	710	710	710	710	800	800	800	800	800	800
工作台尺寸 mm	Worktable Size	400*600	400*600	420*650	440*670	470*750	570*860	650*1000	710*1120	740*1300	800*1400
工作台板孔尺寸 mm	Table Plate Hole Size	120	130	180	180	180	180	200	220	180	220
工作台板厚度 mm	Bolster Thickness	50	50	70	70	80	90	110	130	160	160
滑块底面尺寸 mm	Slide Base Size	170*220	170*220	210*250	240*280	260*300	360*450	420*520	440*560	580*760	600*780
模柄孔尺寸mm	Shank Hole Size	40*60	40*60	50*70	50*70	60*80	60*80	60*90	65*90	65*90	70*100
立柱间距 mm	Distance Between Column	200	250	280	320	360	460	480	600	690	700
电机功率	Motor Power	2.2	3	4	5.5	5.5	7.5	11	15	18.5	22
外形尺寸mm	Overall Dimensions	14007801950	18908001950	197011002300	198011002350	226012652450	243014002850	265016403400	266017103480	288019003890	343021003750
重量 kg	Weight	2050	2400	3820	4650	6100	7200	11200	16500	19200	24600
