Home > Products > Other Machinery > Slotting Machine
Other Machinery

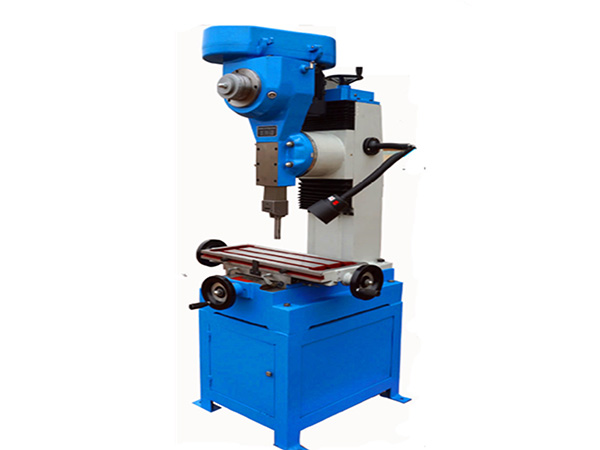

XC100/XC125
|
主要技术参数 |
Main Specification |
XC100 |
XC125 |
|
最大插销行程 mm |
Max. Slotting Stroke |
100 |
125 |
|
最小冲程次数 次/分钟 |
Min. Number of Stroke times/minute |
60 |
60 |
|
最大冲程次数 次/分钟 |
Max. Number of Stroke times/minute |
350 |
350 |
|
主轴变速 step |
Grade of Spindle Speed |
6 |
6 |
|
机头回转角度 ° |
Machine Head Turning Angle |
90 |
90 |
|
刀架回转角度 ° |
Knife Holder Turning Angle |
360 |
360 |
|
工作台尺寸 mm |
Table Size |
500*200 |
500*200 |
|
包装尺寸（L*W*H）mm |
Packing Size |
740*740*1650 |
740*740*1650 |
|
净重/毛重 kg |
N.W/G.W |
236/286 |
243/293 |
Hits:412
