Drilling machine

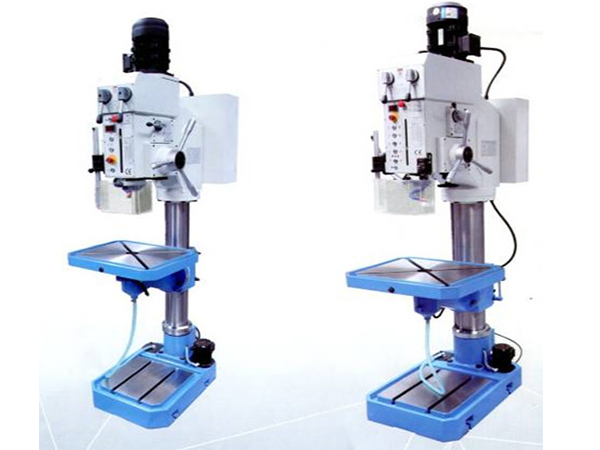

ZN5035A/ZY5040B
|
主要技术参数 |
Main Specification |
ZN5035A |
ZY5040B |
|
最大钻孔直径 mm |
Max. Drilling Dia.（steel） |
35 |
40 |
|
最大攻丝直径 mm |
Max. Tapping Dia. |
M22 |
M22 |
|
主轴端面到工作台表面的距离 mm |
Max. Distance Between Spindle End to the Surface of Worktable |
590 |
590 |
|
主轴端面到底座表面的距离 mm |
Max. Distance Between Spindle End to the Worktable Surface of the Base |
1150 |
1175 |
|
主轴最大行程 mm |
Max. Spindle Stroke |
155 |
200 |
|
主轴锥度 |
Spindle taper |
MT4 |
MT4 |
|
主轴变速级数 step |
Number of Speed Step of the Spindle |
12 |
12 |
|
主轴变速行程 mm |
Spindle Speed Range |
125-3030 |
52-1400 |
|
主轴进给级数 degree |
Feed Step of the Spindle |
3 |
4 |
|
主轴进给行程 mm/r |
Feed Range of the Spindle |
0.1,0.2,0.3 |
0.1,0.2,0.3,0.4 |
|
工作台到托架之间的最大距离 mm |
Max. Stroke of the Worktable and Its Bracker |
530 |
530（410） |
|
工作台及其支架的横向回转度 |
Rotation Degree of Worktable and its Bracker in Cross Direction |
±45° |
±45° |
|
工作台尺寸 mm |
Worktable Size |
500*420 |
580*460 |
|
立柱直径 mm |
Column Dia. |
120 |
160 |
|
主电机功率 kw |
Main Motor Power |
1.0/1.2 |
2.2 |
|
机器外形尺寸（L*W*H）mm |
Overall Dimension |
875*510*2140 |
940*680*2405 |
|
机器重量 kg |
Weight |
430 |
650 |
