Drilling machine

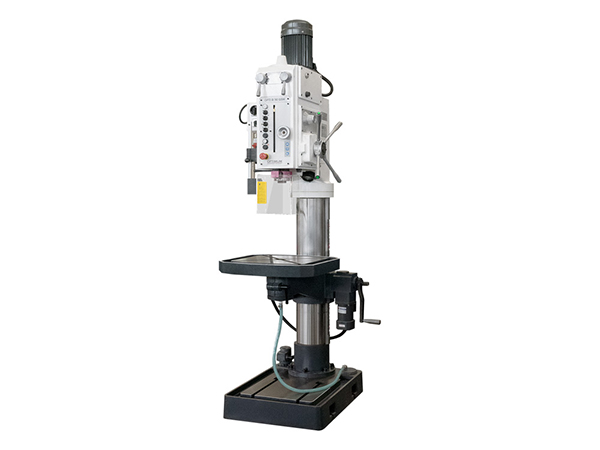

Z5040/Z5040A
|
主要技术参数 |
Main Specification |
Z5040/Z5040A |
|
最大钻孔直径 mm |
Max. Drilling Diameter |
40 |
|
主轴锥度 |
Spindle Taper |
MT4# |
|
主轴中心到立柱表面距离 mm |
Spindle Center to Column Surface Distance |
350 |
|
主轴最大行程 mm |
Max. Stroke of Spindle |
180 |
|
主轴转速范围 mm |
Spindle speed range |
50-1450 |
|
主轴端面至底座工作面的最大距离 mm |
Max. Distance From End Face of the Spindle to the Working Face of the Base |
1320 |
|
主轴端面至工作台的最大距离 mm |
Max. Distance From End face of the Spindle to the Table |
780 |
|
工作台大小 mm |
Worktable Size |
560*350/560*560 |
|
底座大小 mm |
Base Size |
730*500 |
|
T型槽宽度 mm |
T-solt Width |
18 |
|
底座T型槽间距离 mm |
Base T-solt Distance |
150 |
|
进给范围 mm/rev |
Feed Range |
0.1,0.2 |
|
主电机功率 kw |
Main Motor Power |
0.85/1.5 |
|
冷却泵功率 kw |
Cooling Pump Motor Power |
0.06 |
|
外形尺寸（L*W*H）mm |
Overall Dimension |
730*560*2220 |
|
包装箱尺寸（L*W*H）mm |
Packing Size |
1130*700*2280 |
|
净重/毛重 kg |
N.W/G.W |
465/545 |
标准附件 Standard Accessories： 工作灯 Working Lamp
冷却系统 Cooling System
防护装置 Denfensive Equipment
钻夹头及接杆 Drill Chuck and Post
