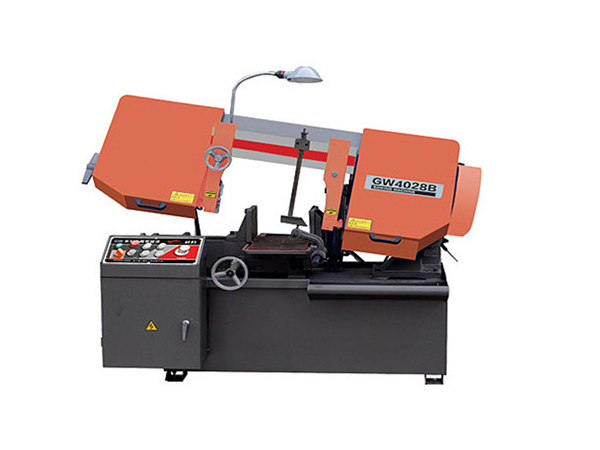

GW4028B
|
主要技术参数 |
Main Specification |
GW4028B |
|
锯切范围 圆钢 mm 方钢 mm |
Max. Cutting Capacity |
Round：280 Square：220*400 |
|
锯条规格 mm |
Saw Size |
3505*27*0.9 |
|
锯切速度 m/min |
Saw Speed |
22,41,59,85 |
|
主电机功率 kw |
Main Motor Power |
2.2 |
|
工件夹紧方式 |
Workpiece Clamping Mode |
Manual/Hydraulic |
|
锯带张紧方式 |
Tension |
Manual |
|
机床外形尺寸（L*W*H）mm |
Overall Dimensions |
1900*1100*1230 |
|
净重/毛重 kg |
N.W/G.W |
680/740 |
