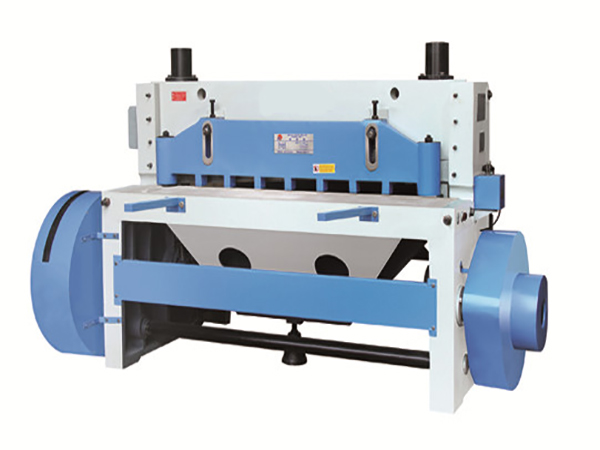

Shear machine
QB11-10*1500/QB11-12*1000
|
主要技术参数 |
Main Specification |
QB11-8*2000 |
QB11-8*2500 |
|
最大剪切厚度 mm |
Max. Shear Plate Thickness |
10 |
12 |
|
最大剪切板宽 mm |
Max. Shear Plate Width |
1500 |
1000 |
|
可剪板的强度极限 N/mm² |
Ultimate Strength of Shearing Plate |
≤450 |
≤450 |
|
剪切角度 ° |
Shear Angle |
3° |
3° |
|
后挡料最大距离 mm |
After the Espected Max. Distance |
500 |
500 |
|
行程次数 rpm |
Stroke times |
50 |
50 |
|
主电机功率 kw |
Motor Power |
15 |
15 |
|
外形尺寸（L*W*H）mm |
Overall Dimensions |
2670*1650*1620 |
2170*1650*1620 |
|
机床重量 kg |
Weight |
4000 |
3600 |
