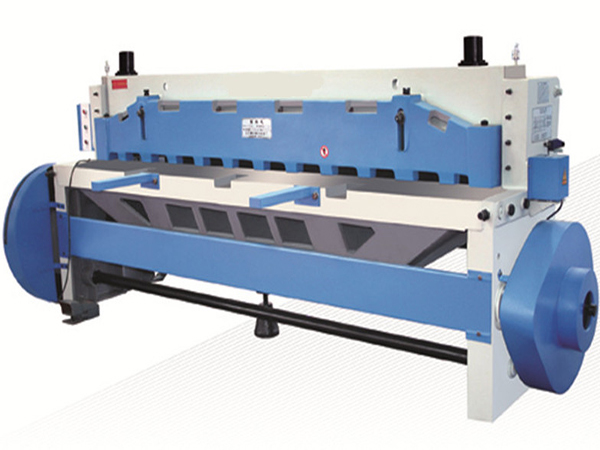

Shear machine

QB11-42000/QB11-42500/QB11-4*3200

主要技术参数	Main Specification	QB11-4*2000	QB11-4*2500	QB11-4*3200
最大剪切厚度 mm	Max. Shear Plate Thickness	4	4	4
最大剪切板宽 mm	Max. Shear Plate Width	2000	2500	3200
可剪板的强度极限 N/mm²	Ultimate Strength of Shearing Plate	≤450	≤450	≤450
剪切角度 °	Shear Angle	2°15’	1°50’	1°30’
后挡料最大距离 mm	After the Espected Max. Distance	500	500	500
行程次数 rpm	Stroke times	45	45	45
主电机功率 kw	Motor Power	5.5	5.5	7.5
外形尺寸（LWH）mm	Overall Dimensions	299014201250	349014201250	498619001610
机床重量 kg	Weight	3000	3500	5100
