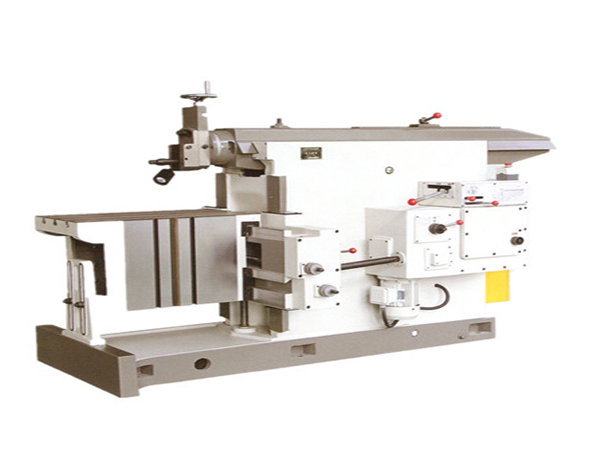

BC6085
|
主要技术参数 |
Main Specification |
BC6085 |
|
最大刨削长度 mm |
Max. Planing Length |
850 |
|
滑枕底面到工作台面的最大距离 mm |
Max. Distance Between Ram and Worktable |
400 |
|
工作台最大横向移动距离 mm |
Max. lateral Movement distance of Table |
710 |
|
工作台最大垂直移动距离 |
Max. Vertical Movement Distance Of Table |
360 |
|
工作台上工作面尺寸 mm |
Worktable Size |
800*450 |
|
刀架最大行程 mm |
Max. Stroke Length of the Toolhead |
160mm |
|
滑枕每分钟往复次数 （times/min） |
Times of Ram Reciprocation per Minute |
17,24,35,50,70,100 |
|
刀架最大回转角度 ° |
Max. Swivel angle of The Toolhead |
±60 |
|
刀杆最大尺寸（宽*厚）mm |
Max. Size Of Toolhead （width*thickness） |
- |
|
工作台进给量范围 水平进给 12 级 |
Range of Table Feed Horizontal |
0.25-3 |
|
垂直进给 12 级 |
Vertical |
0.12-1.5 |
|
工作台中央T型槽尺寸 mm |
Width Of T-slot for Center Positioning |
22 |
|
电机功率 kw |
Motor Power |
5.5 |
|
机器外形尺寸（L*W*H）mm |
Overall Dimensions |
2950*1325*1693 |
|
净重/毛重 kg |
N.W/G.W |
2940/3090 |
