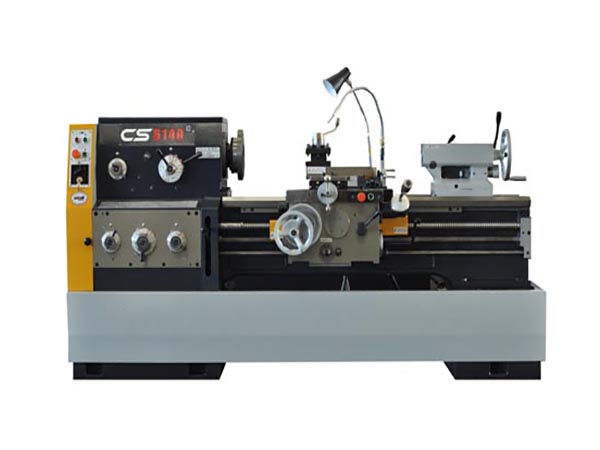

CS6140/CS6150/CS6150BS6140C/CS6150C/CS6166C

Item

Unit

Parameter

CS6140

CS6150

CS6150B

CS6166B

CS6140C

CS6150C

CS6166C

Capacity

Max swing over bed

mm(in)

φ400(15.748)

φ500(19.685)

φ660(25.984)

φ400(15.748)

φ500(19.685)

φ660(25.984)

Max swing over slide

mm(in)

φ220(8.614)

φ300(11.811)

φ420(16.535)

φ220(8.614)

φ300(11.811)

φ420(16.535)

Max workpiece length

mm(in)

750/1000/1500/2000/3000(30/40/60/80/120)

Spindle

Spindle thru-hole

mm(in)

φ52(2.047)

φ82(3.288)

φ105(4.133)

Spindle nose

CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type

Spindle speed

r/min(rpm)

24 step 9-1600

12 step 36-1600

Spindle motor

kW(hp)

7.5(10.2)

Tailstock

Quill dia./travel

mm(in)

φ75 /150 (2.953/5.906)

Taper of center

MT

5

Turret

Number of station/Tool section

mm(in)

4/25X25(1X1)

Max X-axis travel

mm(in)

145(5.708)

Max Z-axis travel

mm(in)

320(12.958)

310(12.204)

320(12.958)

310(12.204)

Feed

X-axis feed

mm/r (in/r)

93 sorts 0.028-6.43(0.0010-0.2392 in/r)

65 sorts 0.063-2.52(0.0023-0.0937 in/r)

Z-axis feed

mm/r(in/r)

93 sorts 0.012-2.73(0.0004-0.1032 in/r)

65 sorts 0.027-1.07(0.0011-0.0404 in/r)

Metric thread

mm

48 sorts 0.5-224

22 sorts 1-14

Inch thread

t.p.i

48 sorts 72-1/4

25 sorts 28-2tpi

Module thread

πmm

42 sorts 0.5-112

18 sorts 0.5-7

DP thread

t.p.i.π

42 sorts 56-1/4

24 sorts 56-4

Others

Coolant pump motor

kW(hp)

0.081

Machine length

mm(in)

750(30)

2382(93.8)

1000(40)

2632(103.6)

1500(60)

3132(123.3)

2000(80)

3632(142.9)

3000(120)

4632(182.9)

Machine width

mm(in)

975(38.3)

Machine height

mm(in)

1230(48.4)

1270(50)

1350(53.1)

1250(49.2)

1270(50)

1350(53.1)

Machine weight

kg(lbs)

750

(30)

1975

(4354 lb)

2052(4520 lb)

2150(4735 lb)

1975(4354 lb)

2052(4520 lb)

2150(4735 lb)

1000

(40)

2050

(4520 lb)

2100(4630 lb)

2200(4845 lb)

2050(4520 lb)

2100(4630 lb)

2200(4845 lb)

1500

(60)

2250

(4960 lb)

2300(5070 lb)

2400(5286 lb)

2250(4960 lb)

2300(5070 lb)

2400(5286 lb)

2000

(80)

2450

(5400 lb)

2500(5510 lb)

2600(5727 lb)

2450(5400 lb)

2500(5510 lb)

2600(5727 lb)

3000

(120)

2850

(6280 lb)

2900(6390 lb)

3000(6610 lb)

2850(6280 lb)

2900(6390 lb)

3000(6610 lb)
