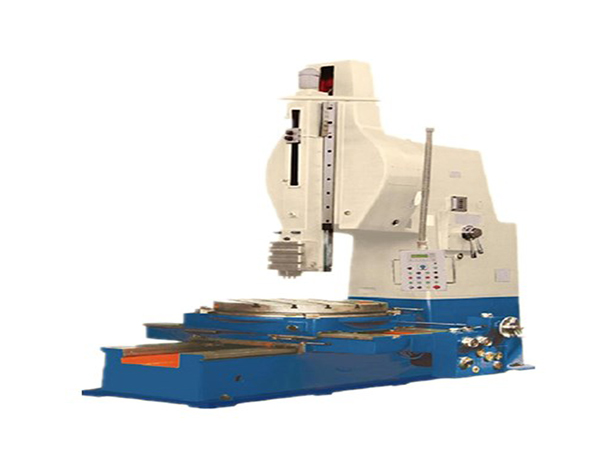

B5063

Model	B-5063
Max.Slotting Length of ram	630	mm
Number of ram strokes(per min)	8,12,20,30	r.p.m
Indination of ram head	±10°	deg
Distance between tool holding surface and colunmn front	1120	mm
Collet for slotting tool with sidth of Table	22H11	mm
Distance between workable and the lower side of slide	800	mm
Max .longitudinal travel of table	1000	mm
Max crossl travelof table	700	mm
Range of table longitudinal and transverse feeds ram storke	0.10,0.20,0.32,0.54,0.80,1.3 0	mm/per
Rang of table rotary feed deg per ram storke	3`,6`,9`36``,16`12``,24`,39`	deg/per
Diameter of the worktable	1120	mm
Max.weight of the worktable	2000	kg
Width of main drive motro	22H11	mm
Power of main drive motor	10	kw
Max Cutting force	2000	N
Machine net weight(approx)	11	t
Overall dimension(LwH)	358023903660	mm
