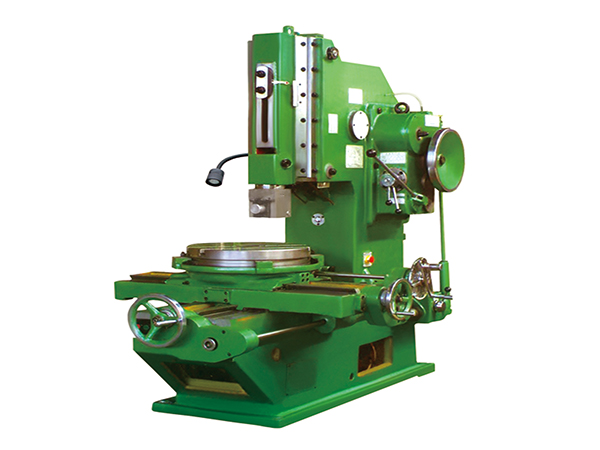

B5040

Model	B-5040
Max.Slotting Length of ram	400	mm
Number of ram strokes(per min)	30 / 32 / 50 / 80	r.p.m
Indination of ram head	±8°	deg
Max .longitudinal travel of table	620	mm
Max cross travel of table	560	mm
Range of table longitudinal and transverse feeds ram storke	0.08 - 1.21	mm/per
Diameter of the worktable	630	mm
Max.weight of the worktable	500	kg
Power of main drive motor	4	kw
Max Cutting force	7500	N
Machine net weight(approx)	3700	kg
Overall dimension(LwH)	229015252485	mm
