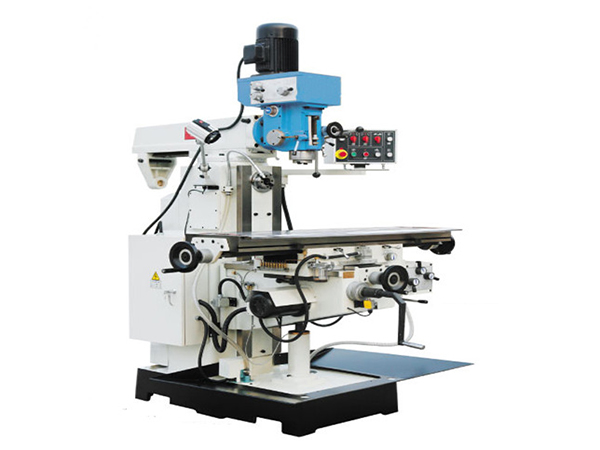

ZX6350ZA

Specifications

Units

ZX6350ZA

Table size

mm

1250×320

Table travel X/Y/Z

mm

600/300/280

Spindle taper

ISO40

Max. drilling dia.

mm

50

Automatic drilling dia.

mm

14

Max. vertical milling dia.

rpm

25

Distance between spindle nose and table surface

mm

90-370

Distance Between Spindle nose and Column

mm

200-550

Table Vertical and horizontal feed rate

rpm

22-555

Auto feeding of Z axis

rpm

560

T Solt(number/width/distance)

mm

3/14/70

Spindle speed range

rpm

90-2000/40-1300

Spindle travel

mm

120

Overall dimension

mm

1520×1290×2150

Spindle motor power

kW

2.2

Machine weight

kg

1400
