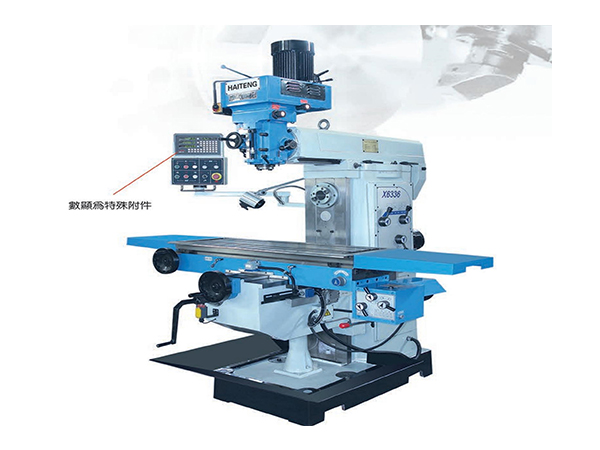

X6336

Main Specifications

X6336

Spindle taper

ISO40(V)ISO50(H)

Diameter of quill

120mm

Distance from spindle to table

135-535mm

Distance between spindle axis and boom

230mm

Distance from spindle to column

200-700mm

Spindle speeds

70-4660rpm(V)60-1800rpm(H)

Spindle travel

145mm

Feeding of quill

3 stpes 0.04/0.08/0.15

Max drilling capacity of quto feeding

14mm

Head movement

45°

Table size

1370x360mm

Table travel

1000/320/400mm

T slot numebr

3/18/80mm

Z axis motor

1.1KW

Max weight of workpiece

400kg

Packing size

1800x1900x2250mm

N.G/G.W

2450/2650KG
